9m antenna-C, Ku, Ka band,L,ka,S,X,C band, 9 meter large satellite dish

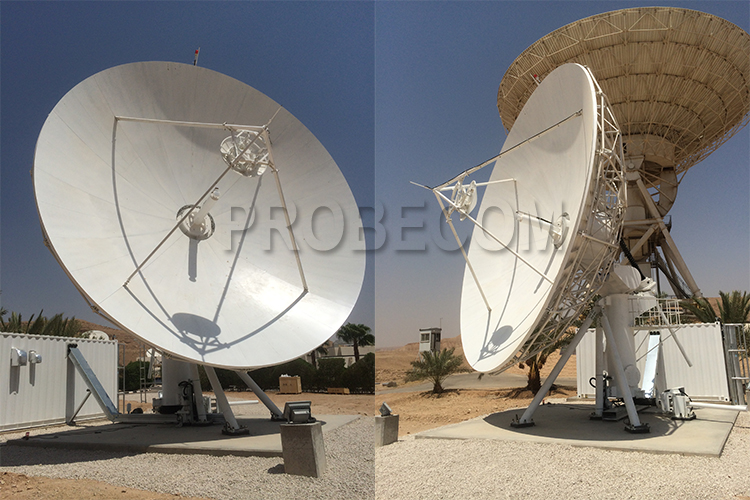

The Probecom 9.0-meter antenna delivers exceptional performance for transmit/ receive and receive only applications for L through Ka-band frequencies. This antenna offers a reflector design that incorporates precision-formed panels, truss radials and hub assembly using matched tooling for interchangeable components. It features an innovative feed systerm and sub-reflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference.

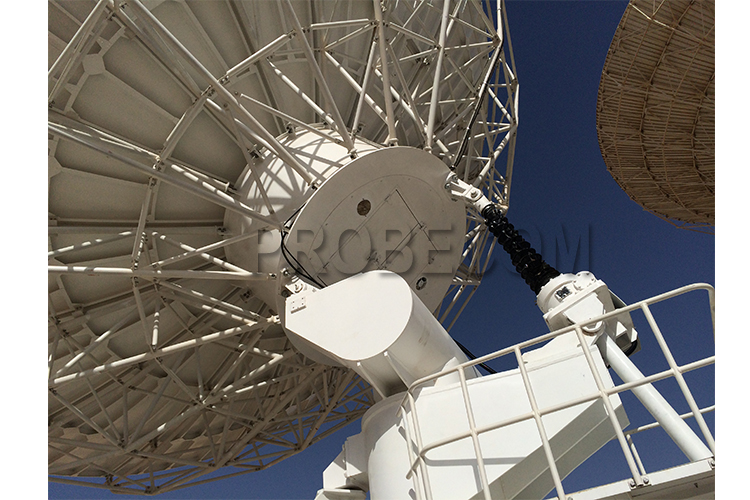

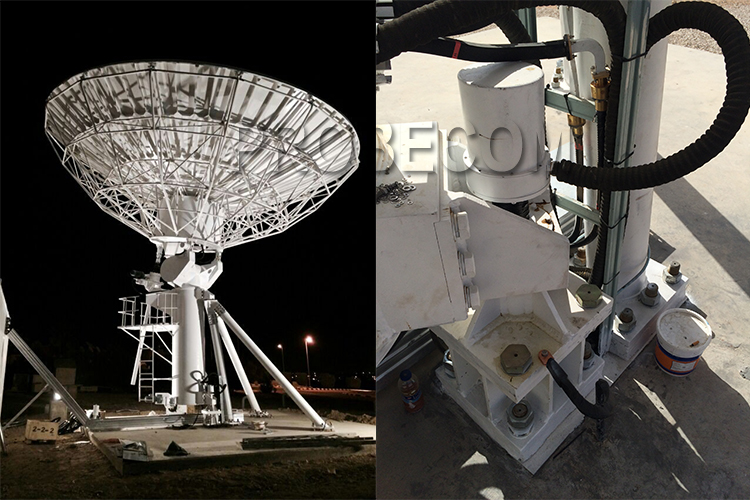

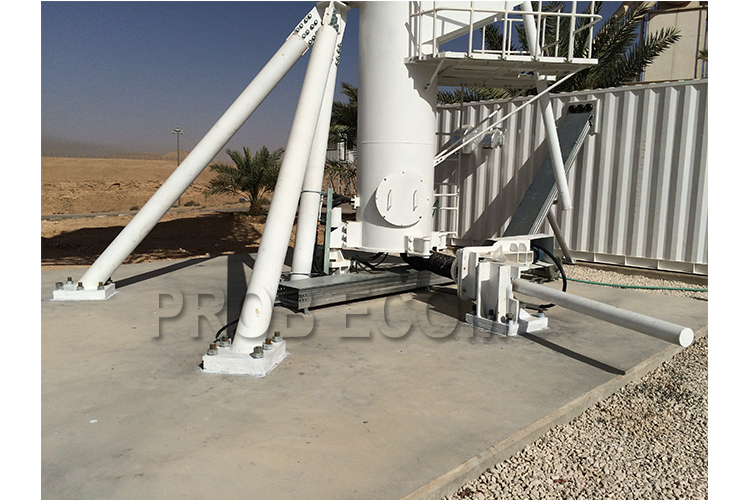

A large center hub provides spacious accommodation for equipment mounting. The reflector is supported by a galvanized elevation over azimuth kingpost pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations. The electrical performance is compliant with ITU-RS-580 sidelobe specifications.

OPTIONS

• L, S, C, X, Ku, DBS and Ka-band feed configurations
• C/Ku receive-only feed systems
• CP/LP manual or remote switchable feeds
• Specialized feed systems (e.g. extended, multi-band)
• Antenna control system with tracking
• Reflector and feed deicing systems
• Environmental hub configurations
• Integrated transmit cross-axis kits
• Integrated LNA or LNB systems

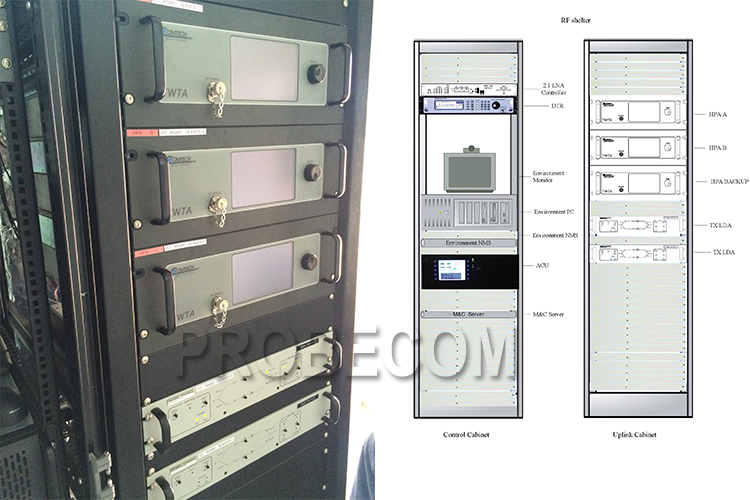

• HPAs, converters and M&C systems
• Load frame mounts
• Packing for sea and air transport

Turnkey installation and testing
