100W SSPA 6-18G

Introduction

* Ultra-wideband doubled frequency CW SSPA

* High power

* High frequency linear communication SSPA

* Pulse system SSPA

* Ka band KW pulse / continuous wave SSPA

* Q band 1~400 W continuous wave SSPA

* Ultra-wideband doubled frequency traveling wave tube driver MPM

* Phased array Tx/Rx components

* V~W band SSPA

* THZ frequency conversion, frequency doubling and amplifying module

High performance, high power, high efficiency, light weight, miniaturization and easy to use are the characteristics of our products, standardization and serialization are our goal.

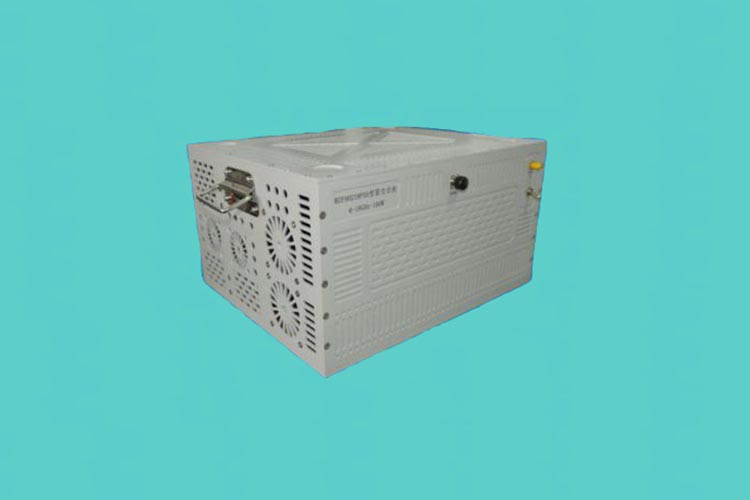

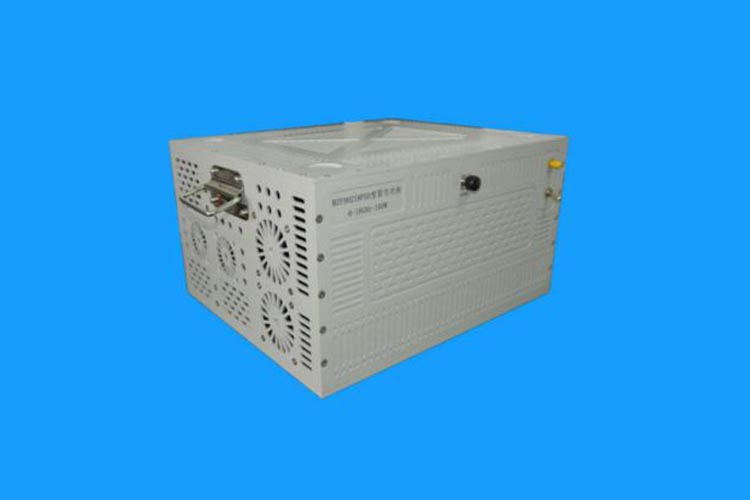

6-18G 100W

Operating system: CW / PW compatible

Application: indoor test instruments (-40~+50°C)

Service life:  ≥15 years

Saturation output power: ≥51dBm

Power gain: ≥55dB

Small-signal gain: ≥70dB ± 2dB

Overall efficiency: ≥15%

ALC accuracy:±0.5dB

Second Harmonic: ≥12dBc

Communication: Local control
