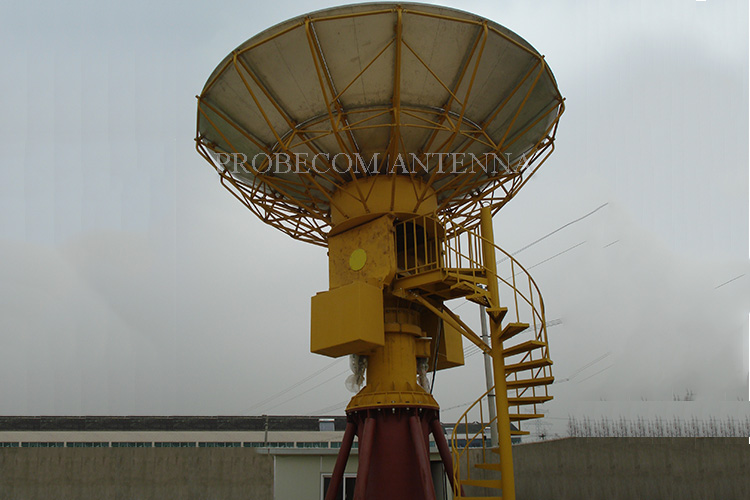

9.0m Tx/Rx Ka band antenna

Probecom 9.0M Ka band antenna adopts all aluminum re-enforced reflectors, consisting of precisely formed panels with matched radials and hub assemblies, ensure the ease of installation. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy for Ka-Band.

It is widely and ideally used for Broadcasters, Service Providers, GSM operator, Satellite operator, Military and Government Agencies, Free Landing or Rescue Organizations.

*High RF performance

*High gain, low sidelobes, low cross polarization

*Galvanized stainless steel hardware

*Different frequency ranges from many feed configurations

*Full motion antenna

*Feed blower or deicing with automatic controls

*Two or four Tx/Rx port in linear or circular polarized feeds

*Installation and maintenance services

Motorization Kits

Limit Switches

ODU Support Kits

Factory Feed System Testing and Documentation

Ocean /Air Transport Packing

Foundation Kit

Grounding Kit Cable-Mounting Kit
