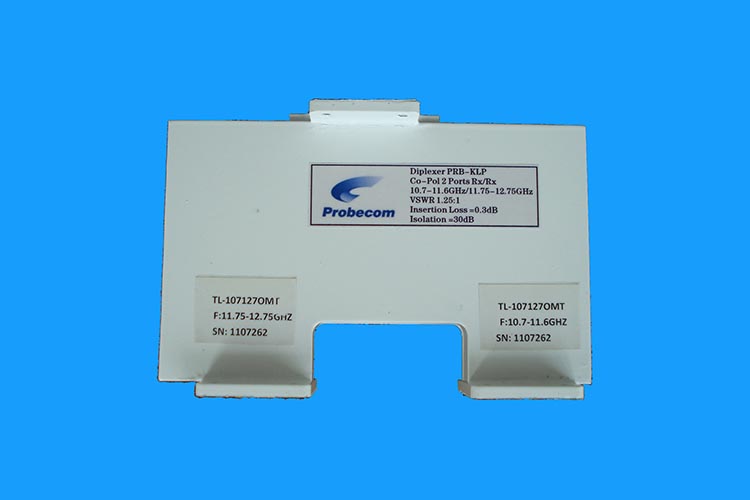

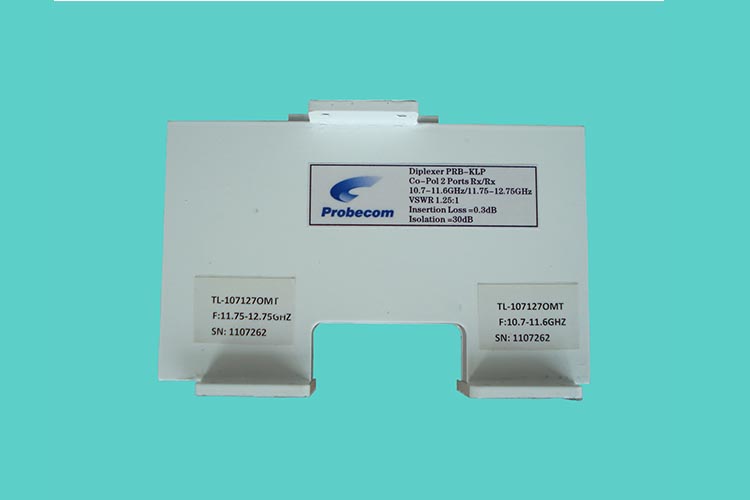

Extended Ku Band Waveguide Splitter(RX only)
Homepage / Extended Ku Band Waveguide Splitter(RX only)
Probecom Technologies designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 GHz for the commercial, military.
A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are “off the shelf products”. Custom designed filters and diplexers for specific customer applications are available.
| TWO-PORT | ||
| Operating Frequency, GHz | RX1 | RX2 |
| 10.7-11.6 | 11.75-12.75 | |
| Polarization | Linear | Linear |
| VSWR | 1.25:1 | 1.25:1 |
| Insertion Loss, dB | ≤0.3dB | ≤0.3dB |
| Input Interface | WR75G | |
| Output Interface | WR75F | WR75F |
| Isolation, Rx/Rx, dB | ≥30dB | |
| Standard and Option | ||
| Pressurization | No or Customized | |
| Material | Aluminum Casting or Customized | |
| Exterior | White paint or Customized | |
